Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine

  • Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
  • Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
  • Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
  • Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
  • Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
  • Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
Nom de marque HUASU
Certification CE,ISO,UL,QS,GMP
Model Number SBG
Minimum Order Quantity 1 Line
Prix USD10k-1000k
Packaging Details STANDARD Package
Delivery Time 90day
Payment Terms TT,LC
Supply Ability 100 Line

Contactez-moi pour des échantillons gratuits et des coupons.

Je suis désolé.:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Pipe diameter(mm) 32-1600mm Total power(kw) 200-1000kw
forming Vacuum Forming pipe function Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer
Max speed (m/min) 1.5-5m/min HDPE output 40-1600kg/h
cooling system Complete Inner Cooling System. structure corrugator Horizontal Structure Corrugator, Easy Change Production Size
Mettre en évidence

Corrugated PVC Making Machine

,

Double-layer corrugated pipe extrusion line

,

HDPE corrugated pipe extrusion line
Laisser un message
Description de produit

Double-layer /Double Wall Corrugated PVC/HDPE/PP Making Machine

Product Description:

The corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.

Online belling can be achieved to ensure the performance of the formed corrugated pipe products. Adopts Siemens PLC system .


Features:

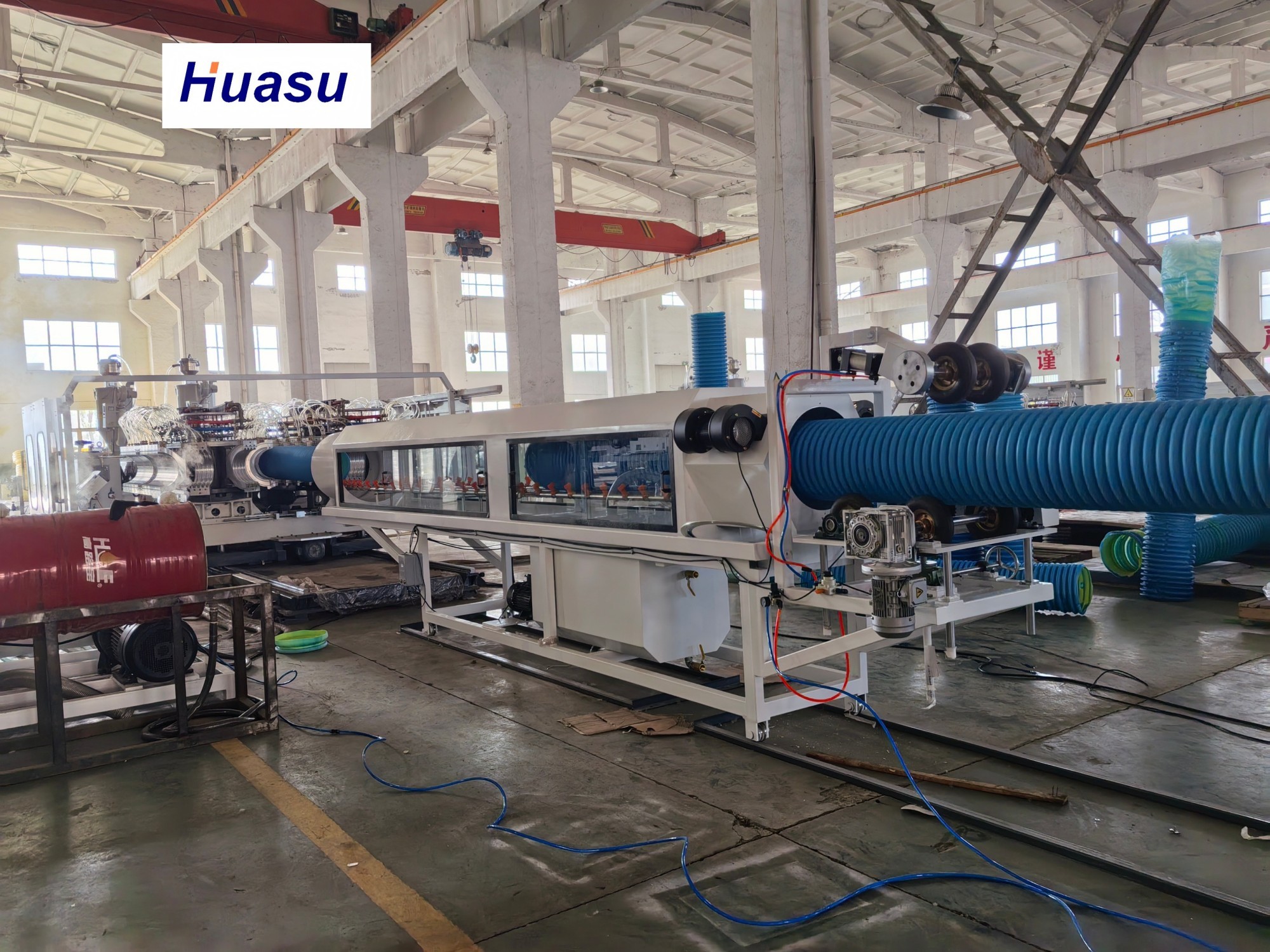

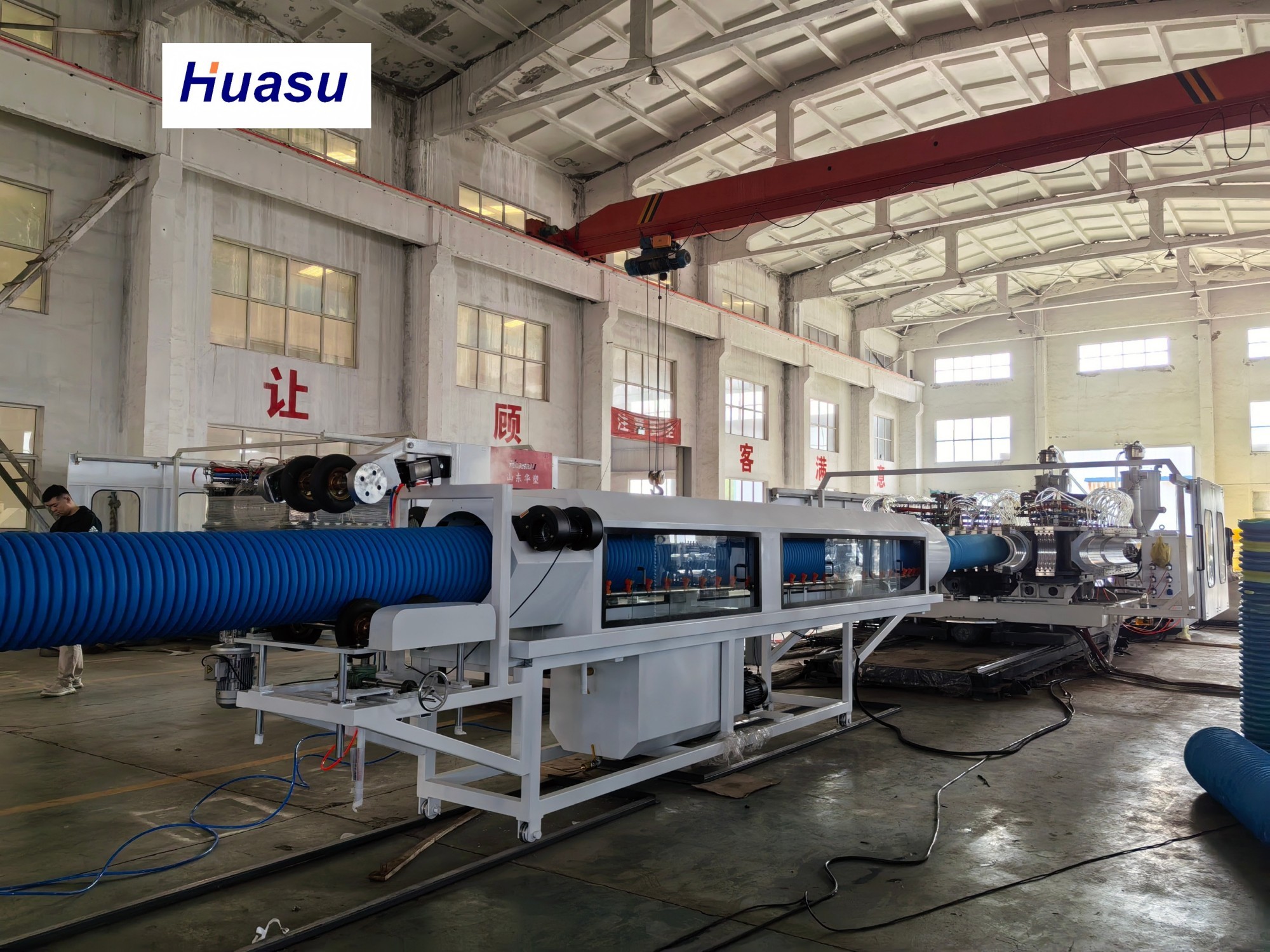

The newly designed closed molding machine features a special high-efficiency cooling system specifically for forming aluminum modules. This system significantly enhances the cooling efficiency during the production of corrugated pipe products.

A high-speed, high-output single-screw extrusion machine is utilized in conjunction with a professionally designed corrugated pipe extrusion mold to achieve consistently stable extrusion on a large scale.

The module boasts good interchangeability; crafted from LY12 high-quality alloy aviation aluminum material with a copper content of at least 5%. Through precision pressure casting, this module is made of high-density material devoid of light pores, ensuring long-term use without deformation. Further customization of various module waveform schemes is available to meet user requirements.

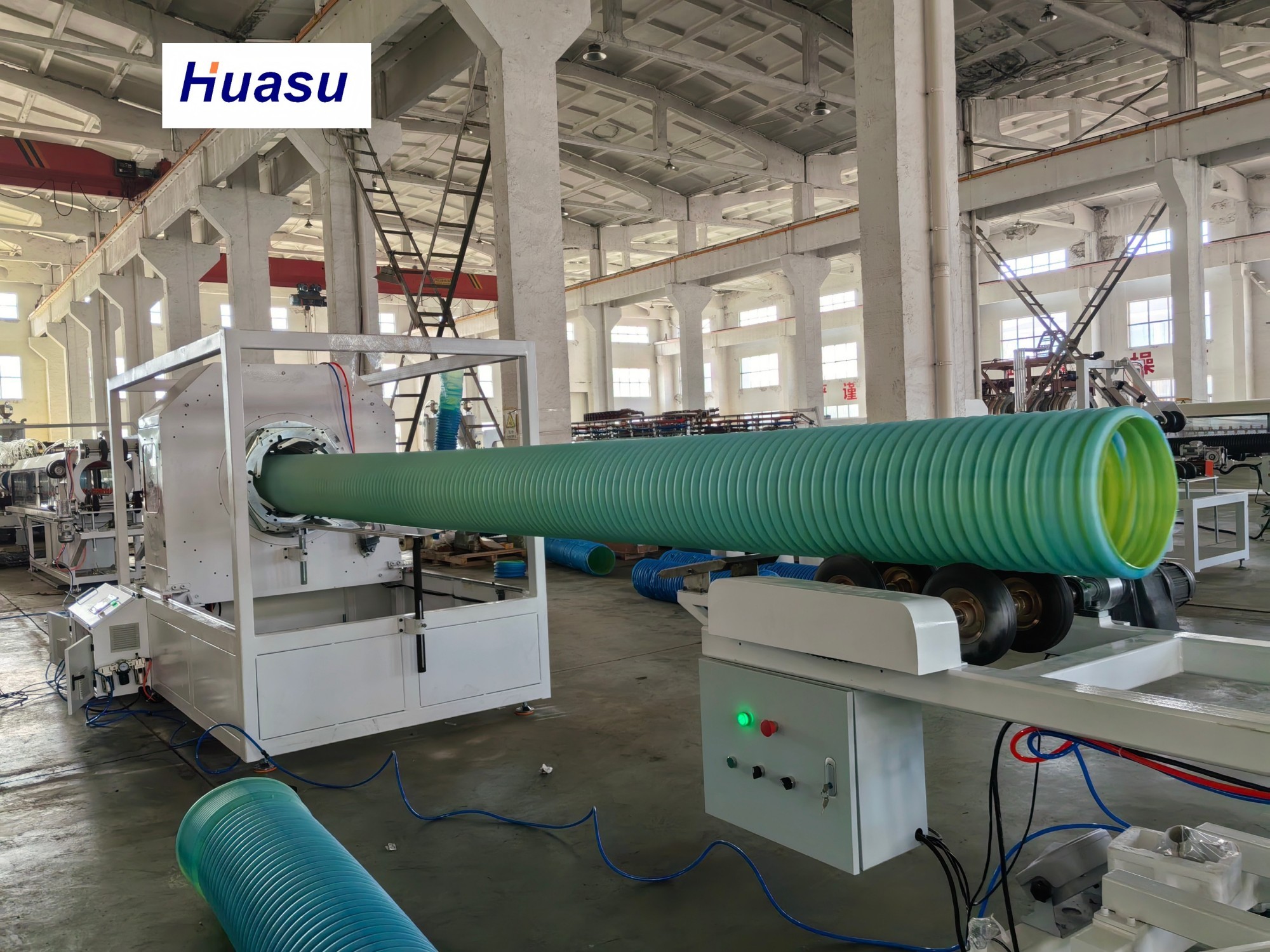

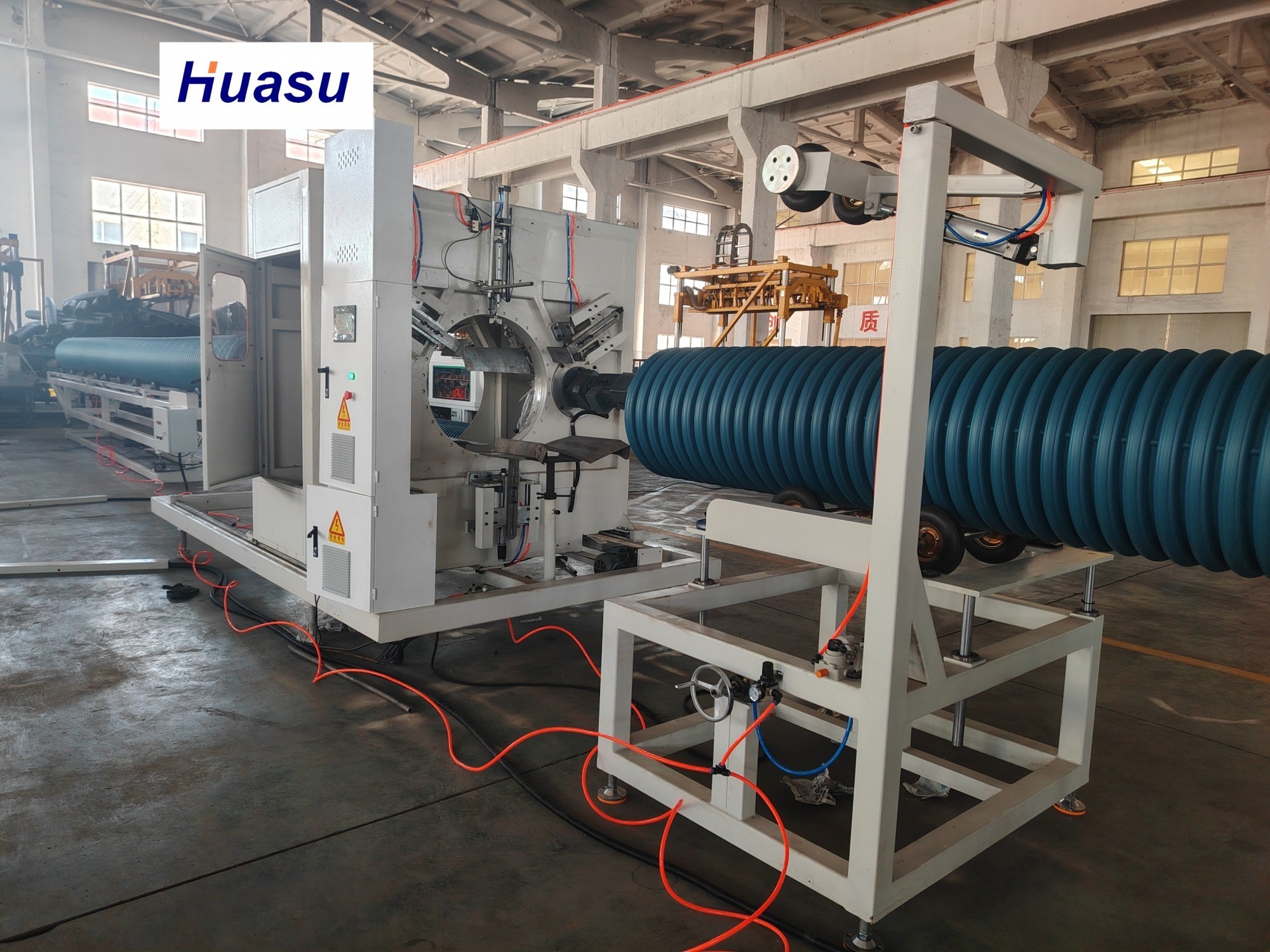

Furthermore, the system is equipped with a supporting automatic DWC cutter controlled by a computer. This feature ensures accurate cutting positions, stable operation, and easy usability.


Technical Parameters:

Max speed (m/min) 1.5-5m/min
Die Head Double-layer Spiral Co-extrusion
Forming Vacuum Forming
Structure Corrugator Horizontal Structure Corrugator, Easy Change Production Size
Pipe Function Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer
HDPE Output 40-1600kg/h
Cooling System Complete Inner Cooling System
Total Power(kW) 200-1000kW
Pipe Diameter(mm) 32-1600mm

Applications:

The corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameters ranging from 32mm to 1600mm and inner diameters accordingly. These corrugated pipes find extensive applications as cable protection covers and medical transfer tubes in small sizes. In addition, they are used for gas and water transfer in larger sizes, making them versatile for various industrial purposes.
