Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe

  • Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
  • Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
  • Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
  • Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
  • Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
  • Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
  • Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
Nom de marque HUASU
Certification CE,ISO,UL,QS,GMP
Model Number SBG
Minimum Order Quantity 1 Line
Prix USD10k-1000k
Packaging Details STANDARD Package
Delivery Time 90day
Payment Terms TT,LC
Supply Ability 100 Line

Contactez-moi pour des échantillons gratuits et des coupons.

Je suis désolé.:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Diamètre de tuyau (millimètres) 32 à 1600 mm Formation Formation du vide
Puissance totale ((KW) 200 à 1000 kW Système de refroidissement Système de refroidissement interne complet.
La tête morte Coextrusion spirale à double couche fonction de tuyauterie Couverture de protection de câble, transfert de tuyau médical, transfert de gaz, transfert d'eau
Vitesse maximale (m/min) 1.5-5m/min Production de PEHD 40 à 1600 kg/h
Mettre en évidence

Drainage corrugated pipe extrusion line

,

Water Transfer corrugated pipe extrusion line

,

corrugated PVC pipe production line
Laisser un message
Description de produit

Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe


Product Description:

The corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.

Online belling can be achieved to ensure the performance of the formed corrugated pipe products. Adopts Siemens PLC system.


Features:

The newly designed closed molding machine adopts a special high-efficiency cooling system for forming aluminum modules, greatly improving cooling efficiency in the production of corrugated pipe products.

High-speed, high-output single-screw extrusion machine supports a professionally designed corrugated pipe extrusion mold to achieve large-scale stable extrusion.

Good interchangeability of the module; the aluminum forming module uses LY12 high-quality alloy aviation aluminum material with copper content ≥ 5%, precision pressure casting process, high-density material, no light pores, and long-term use without easily deforming. Various module waveform schemes can be customized according to the user's requirements.

Supporting automatic DWC cutter, computer control, accurate cutting position, stable operation, and easy operation.


Technical Parameters:

Die Head Double-layer Spiral Co-extrusion
Cooling System Complete Inner Cooling System
Forming Vacuum Forming
Pipe Diameter (mm) 32-1600mm
Pipe Function Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer
Structure Corrugator Horizontal Structure Corrugator, Easy Change Production Size
Max Speed (m/min) 1.5-5m/min
HDPE Output 40-1600kg/h
Total Power (kW) 200-1000kW

Applications:

The Corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameter/internal diameter sizes ranging from 32mm to 1600mm. These corrugated pipes find extensive applications such as cable protection cover and medical transfer pipe in smaller sizes. For larger sizes, they are commonly used in gas and water transfer applications.

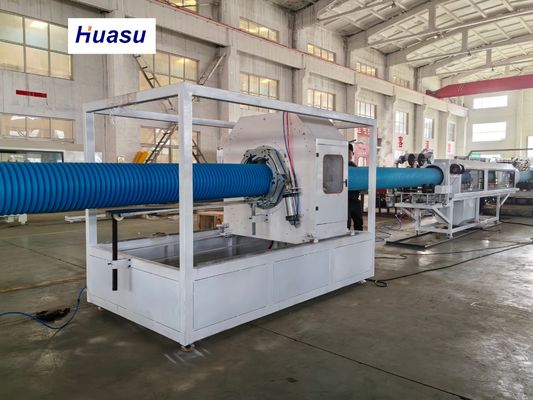

Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe 0

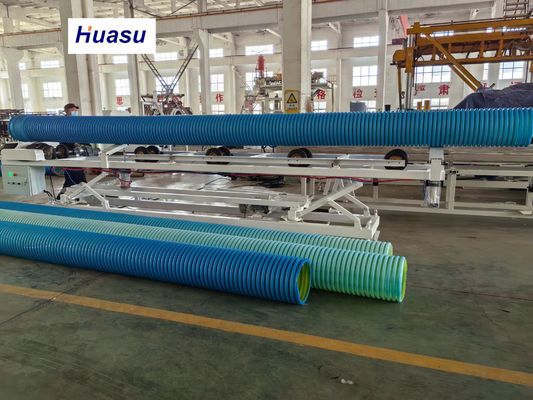

Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe 1

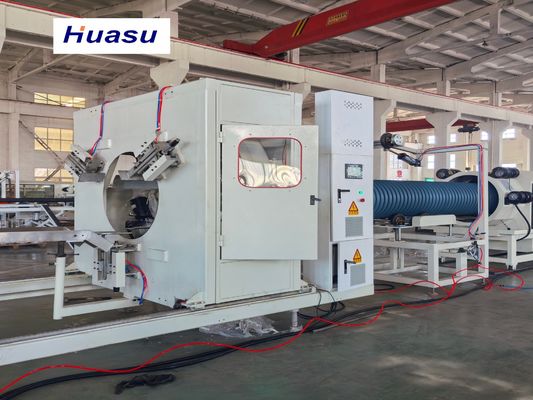

Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe 2

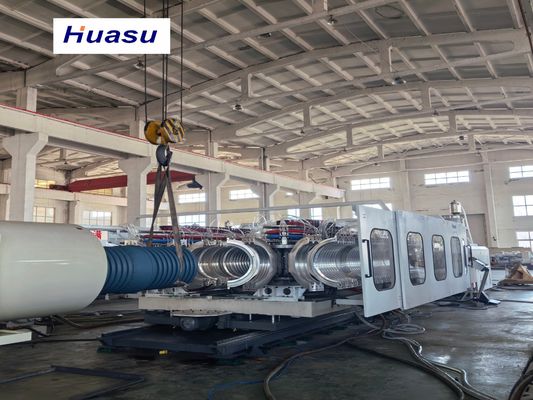

Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe 3
