PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od

  • PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od
  • PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od
  • PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od
  • PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od
  • PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od
  • PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od
Nom de marque HUASU
Certification CE,ISO,UL,QS,GMP
Model Number SBG
Minimum Order Quantity 1 Line
Prix USD10k-1000k
Packaging Details STANDARD Package
Delivery Time 90day
Payment Terms TT,LC
Supply Ability 100 Line

Contactez-moi pour des échantillons gratuits et des coupons.

Je suis désolé.:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Vitesse maximale (m/min) 1.5-5m/min Puissance totale ((KW) 200 à 1000 kW
Diamètre de tuyau (millimètres) 32 à 1600 mm un corrugateur de structure Corrugateur à structure horizontale, taille de production facile à changer
Production de PEHD 40 à 1600 kg/h Système de refroidissement Système de refroidissement interne complet.
Formation Formation du vide La tête morte Coextrusion spirale à double couche
Mettre en évidence

PVC Corrugated Pipe Production Line

,

1600mm PVC Corrugated Pipe Production Line

,

32mm id corrugated pipe extruder
Laisser un message
Description de produit

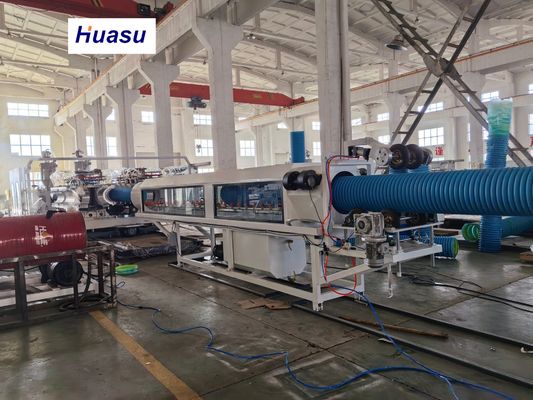

PVC Corrugated pipe machines/Production Line for size from 32mm i.d. up 1600mm o.d.


Product Description:

The corrugated pipeline represents the 3rd generation of enhanced products developed by Shandong HUASU. Compared to its predecessor, the extruder output and pipe production speed have been significantly boosted by 20-40%. Through online belling, the performance of the manufactured corrugated pipes is assured.

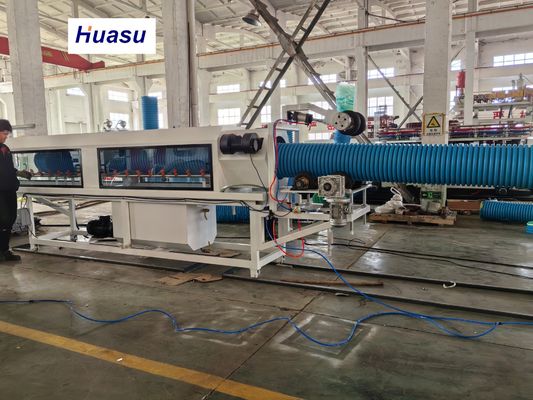

This innovative product incorporates the Siemens PLC system, ensuring high-quality performance and efficient operations. The improved design and advanced technology utilized in the production process guarantee enhanced productivity and reliability.


Features:

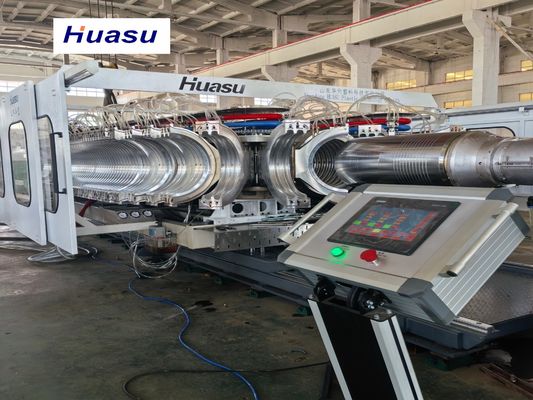

The newly designed closed molding machine is equipped with a special high-efficiency cooling system designed for forming aluminum modules. This system significantly enhances the cooling efficiency during the production of corrugated pipe products.

Additionally, a high-speed, high-output single-screw extrusion machine is utilized, accompanied by a professional design of the corrugated pipe extrusion mould to enable large-scale stable extrusion.

This system boasts good modularity, with the aluminum forming module constructed using LY12 high-quality alloy aviation aluminum material containing a copper content of at least 5%. Through precision pressure casting, the material ensures high density and is free of light pores, resisting deformation even after long-term use. Furthermore, various module waveform schemes can be customized based on user requirements.

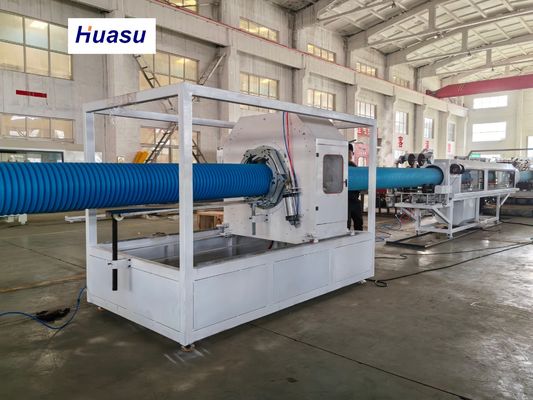

Completing the setup is an automatic DWC cutter with computerized control, ensuring precise cutting positions, stable operation, and user-friendly operation.


Technical Parameters:

Pipe diameter(mm) 32-1600mm
Max speed (m/min) 1.5-5m/min
Pipe function Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer
Cooling system Complete Inner Cooling System
HDPE output 40-1600kg/h
Forming Vacuum Forming
Structure corrugator Horizontal Structure Corrugator, Easy Change Production Size
Total power(kw) 200-1000kw
Die head Double-layer Spiral Co-extrusion

Applications:

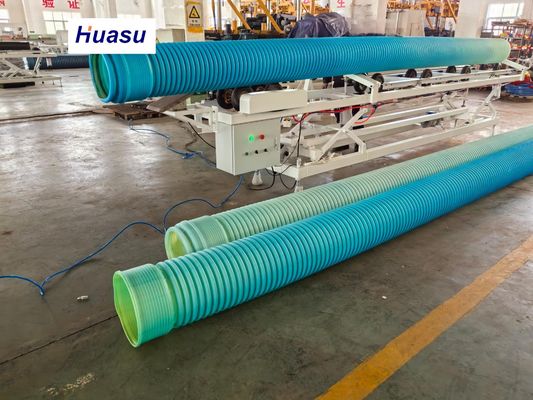

Corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameters ranging from 32mm to 1600mm. These pipes find versatile applications such as cable protection covers and medical transfer pipes for small sizes, as well as for gas and water transfer in larger sizes.

PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od 0

PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od 1

PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od 2

PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od 3
